Surge Absorbers
Surge protective devices(SPD)/surge absorbers are used for power line and communications systems in appliances or electronic products for the purpose of protecting against electrical surges and spikes. Mitsubishi Materials' surge absorbers are made using micro-gap technology which give them quicker and more accurate surge response characteristics.
These are broadly divided into power, communication, and ESD applications.
Surge absorbers are also called surge arresters, lightning arresters, gas discharge tubes.
Protection from surges on power supply lines for switching, inverter, uninterruptible (UPS), and office and home appliance power supplies, as well as photovoltaic power conditioners and inverters, EV/HEV chargers, and outdoor LED lighting.
Conform with various AC withstanding voltage tests, UL, CSA, and IEC (EN) standards
| Part Number | Style | Surge Current Capacity 8/20μs | Standard | DC Spark-Over Voltage (VS) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDA70 Series |  |
2,000A |
UL1449 UL497B EN62368-1 |
300 | 500 | 700 | 1,000 | 1,500 | 2,700 | 3,000 | 3,600 | |||||||||||||

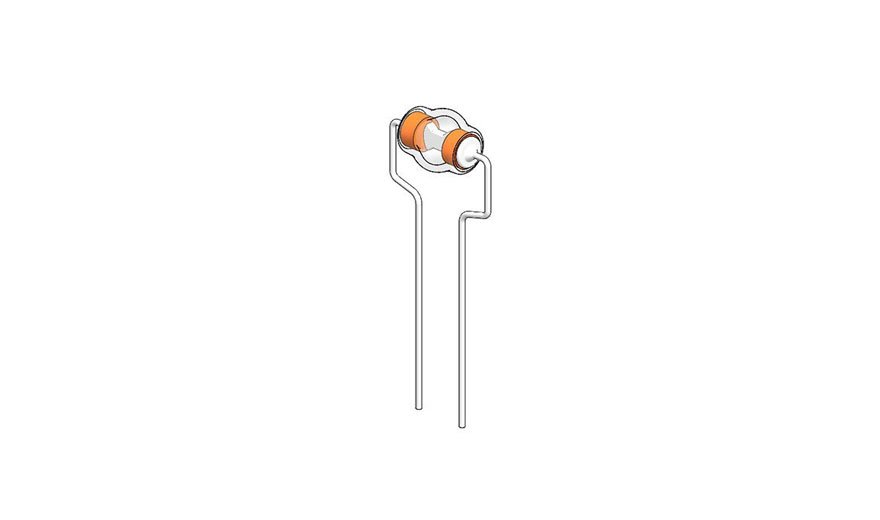

| FA44 Series |  |
2,000A |
UL1449 EN62368-1 |
2,700 | 3,000 | 3,600 | ||||||||||||||||||

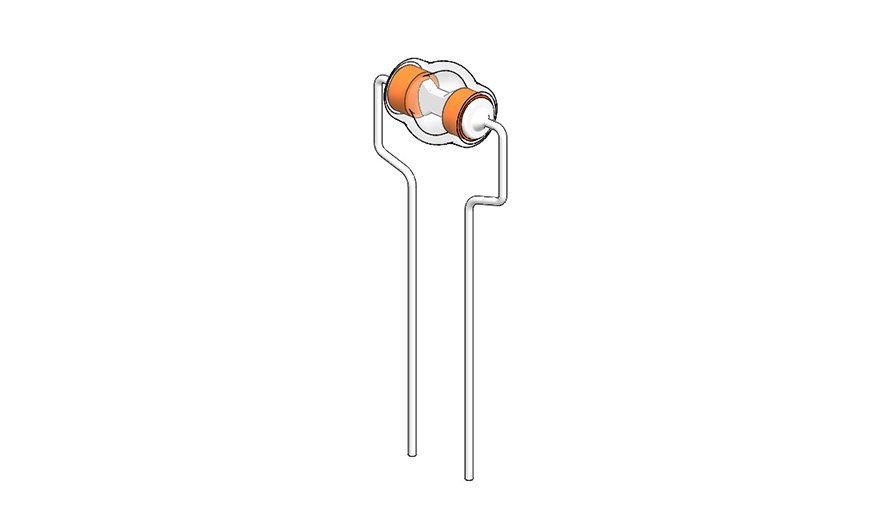

| FA55 Series |  |
2,500A/3 times 3,000A/1 time |
UL1449 CSA C22.2No.269 EN62368-1 |
2,700 | 3,000 | 3,600 | 4,000 | |||||||||||||||||
| DA53 Series |  |
3,000A |
UL1449 EN62368-1 LTI-002-2011 |
350 | 500 | 1,000 | 1,500 | 2,700 | 3,000 | 4,500 | 6,200 | 7,500 | 7,800 | |||||||||||

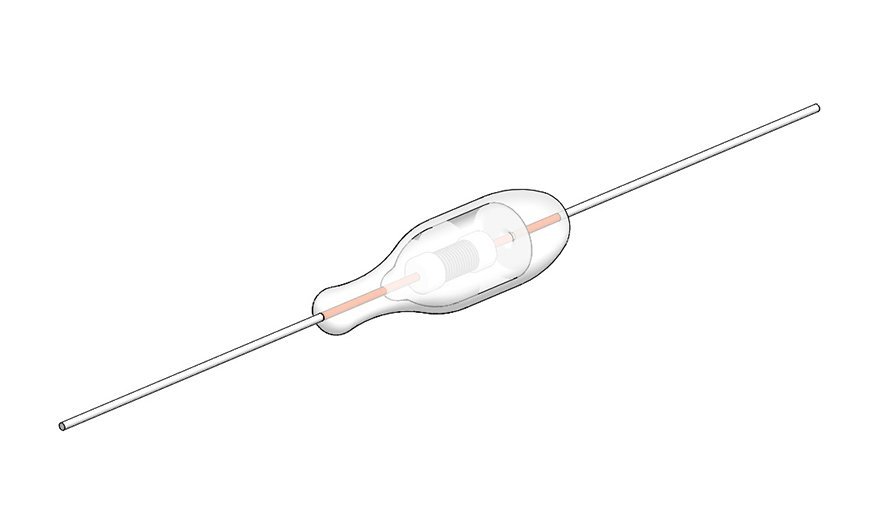

| DSA Series |  |
2,000A |
UL1449 UL497B EN62368-1 LTI-002-2011 |
300 | 500 | 700 | 1,000 | 1,500 | 2,400 | 2,800 | 3,000 | 3,600 | 4,000 | 4,500 | 6,200 | 7,500 | ||||||||

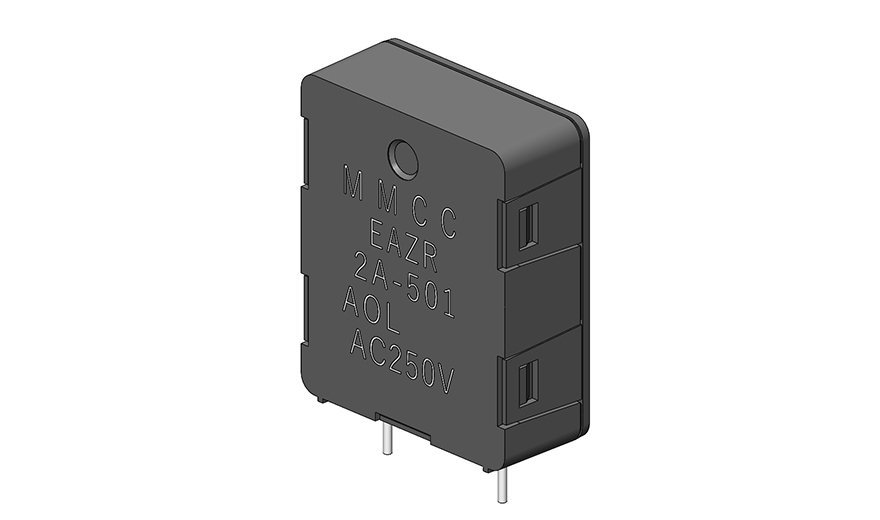

| EAZR Series |  |
Imax=5kA In=2kA Imax=10kA In=5kA |
UL1449 CSA C22.2 No.269 |
300 | 500 | |||||||||||||||||||

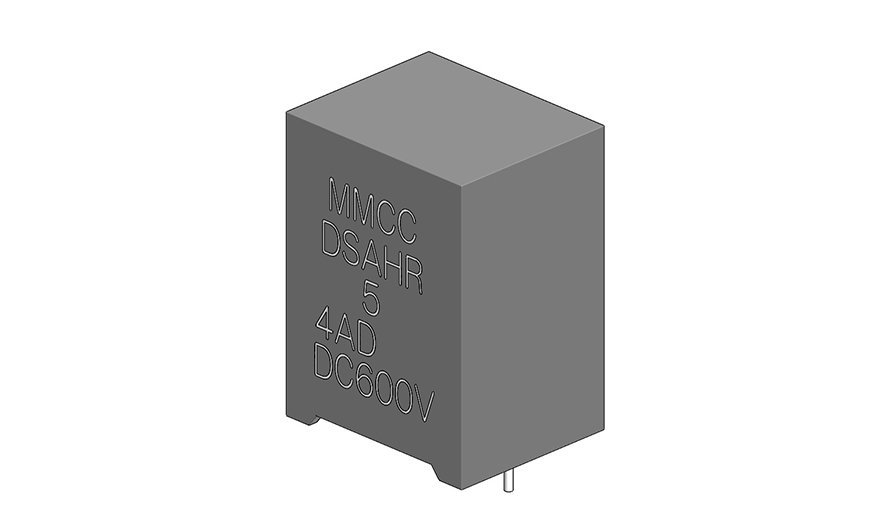

| DSAHR Series |  |
5,000A |
UL1449 |
500 | 800 | 1,200 | 1,500 | |||||||||||||||||

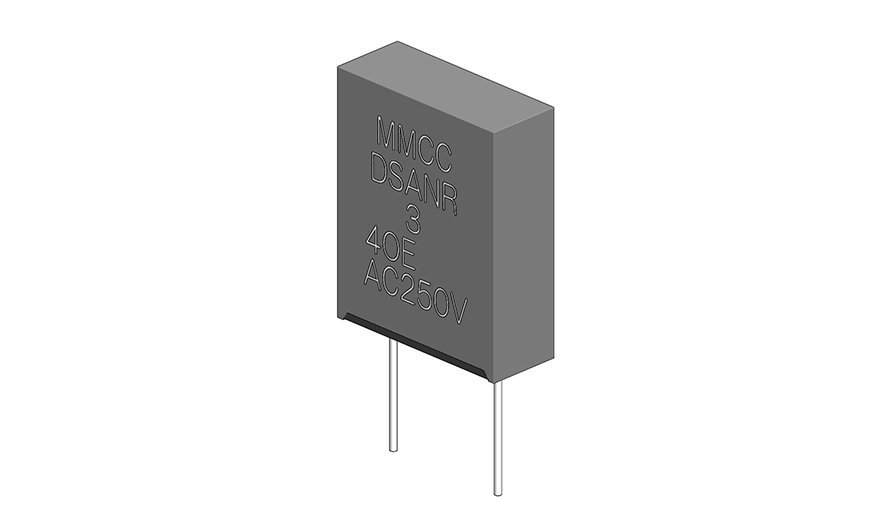

| DSANR Series |  |
1,000A |
UL1449 EN62368-1 |
500 | 600 | 800 | 1,100 | 1,400 | 2,400 | 3,000 | 3,600 | 4,000 | 4,500 | |||||||||||

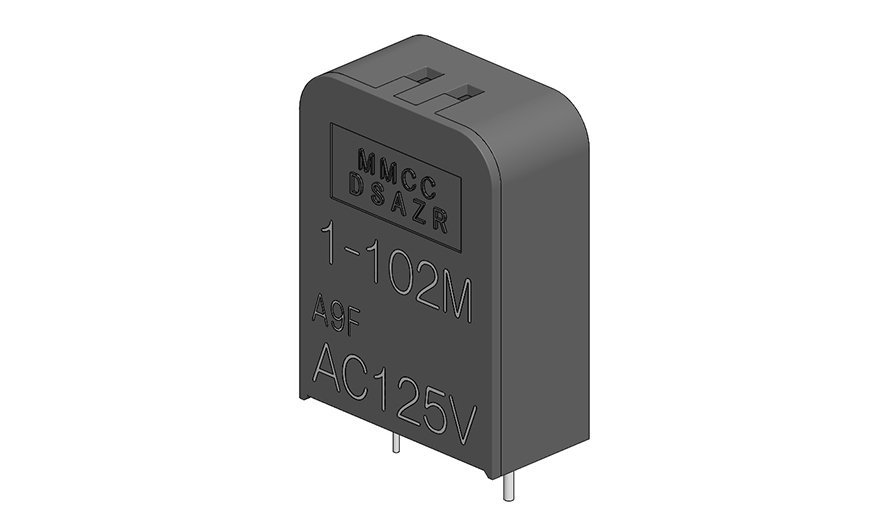

| DSAZR Series |  |
1,000A |
UL1449 C22.2 No. 269.4-17 EN62368-1 |
500 | 600 | 800 | 1,100 | 1,400 | 2,400 | 2,800 | 3,000 | 3,600 | 4,000 | 4,500 | ||||||||||
Surge protection for telephone, modem, fax, VoIP, and all variants of DSL communication lines.
Capacitance of less than 1pF means it doesn't affect the signal in high speed (Mb/s) applications greatly.
| Part Number | Style | Surge Current Capacity 8/20μs | Standard | DC Spark-Over Voltage (VS) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DE37 Series |  |
1,500A |
UL1449 UL497B EN62368-1 |
300 | 350 | 400 | 500 | 1,000 | 2,700 | 3,000 | 3,600 | 4,500 | ||||

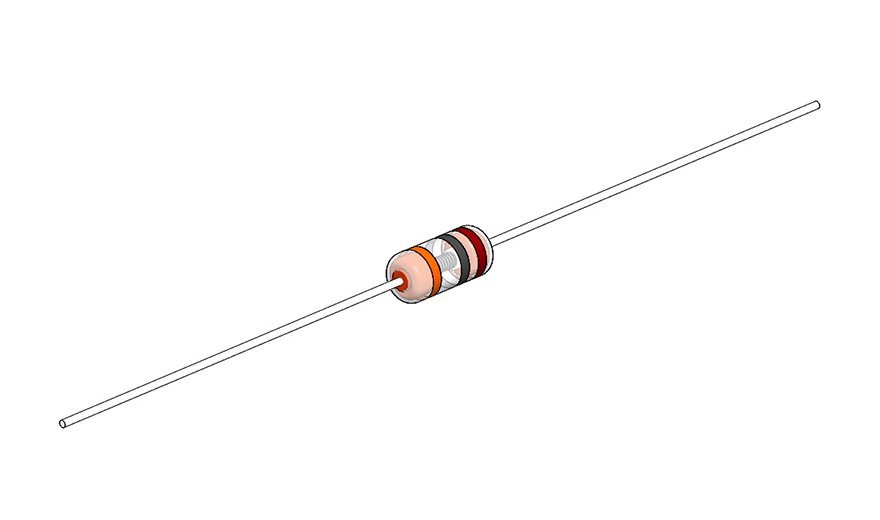

| DSS Series |  |
500A |
UL497B |
200 | 300 | 350 | 400 | 600 | ||||||||
| High voltage DSS Series | |
500A |
UL1449 EN62368-1 LTI-002-2011 |
2,700 | 3,000 | |||||||||||
| CDA70 Series | |
2,000A |
UL1449 UL497B EN62368-1 |
300 | 500 | 700 | 1,000 | 1,500 | 2,700 | 3,000 | 3,600 | |||||
| CSA70 Series |  |
2,000A |
UL(497B) |
300 | 400 | 600 | ||||||||||
ESD protection for antennas, display / tv monitors, car navigation, car audio, automotive ECUs, gaming equipment, and many other applications.
Easily passes electrostatic surge life requirements of ISO61000-4-2 and ISO10605.
| Part Number | Style | Surge life test | Standard | DC Spark-Over Voltage (VS) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSP Series |  |
1500pF-0Ω-10kV 200 times |
- |
140 | 200 | 300 | 500 | 750 | |||||
| High voltage DSP Series | |
1500pF-0Ω-10kV 200 times |
- |
1,000 | 1,500 | 2,700 | 3,000 | ||||||
| CSA30 Series |  |
150pF-330Ω-25kV 20 times |
- |
140 | 400 | ||||||||
| CSA20 Series |  |
150pF-330Ω-20kV 20 times |
- |
140 | 400 | ||||||||
The Litol LTP Series is for surge protective device (SPD) and can protect against induced lightning or electrical noise in arc discharge machining, robots, vending machines, NC tooling, and others.
| Part Number | Style | Maximum Continuous Operating Voltage | Nominal discharge current | Standard |
|---|---|---|---|---|

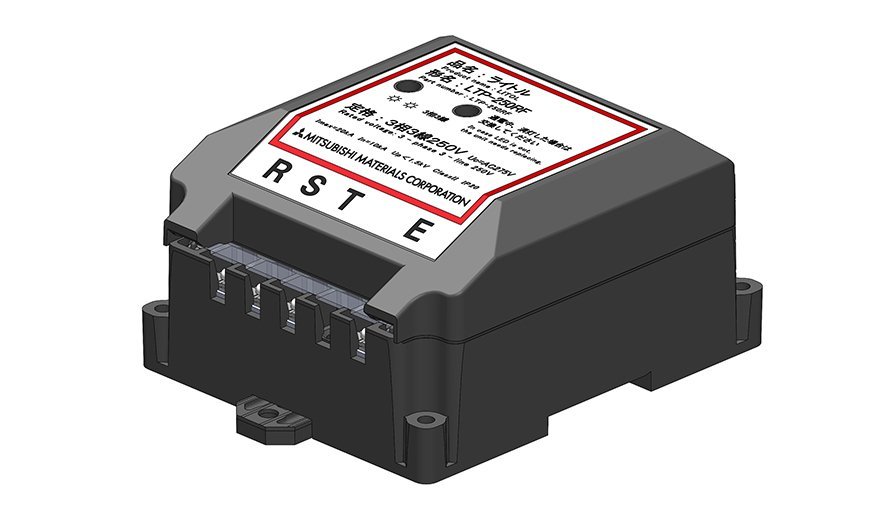

| LTP |  |
20,000A |
- |
- |
