DSP Series
The DSP Series is a surge absorber that protects electronic circuits from static electricity.
Useful informationFeatures
- Car radio, radio cassette, wireless, new media.
- Protection from electrostatic discharge in a CRT display or monitor TV. (Except DSP-141N)
- Protection against electrostatic discharge.
- Operating temperature limit : -40 ~ 85°C
- Storage Temperature Range : -55 ~ 125°C
Dimensions
Weight：0.25g
Manufacturing Site：THAILAND

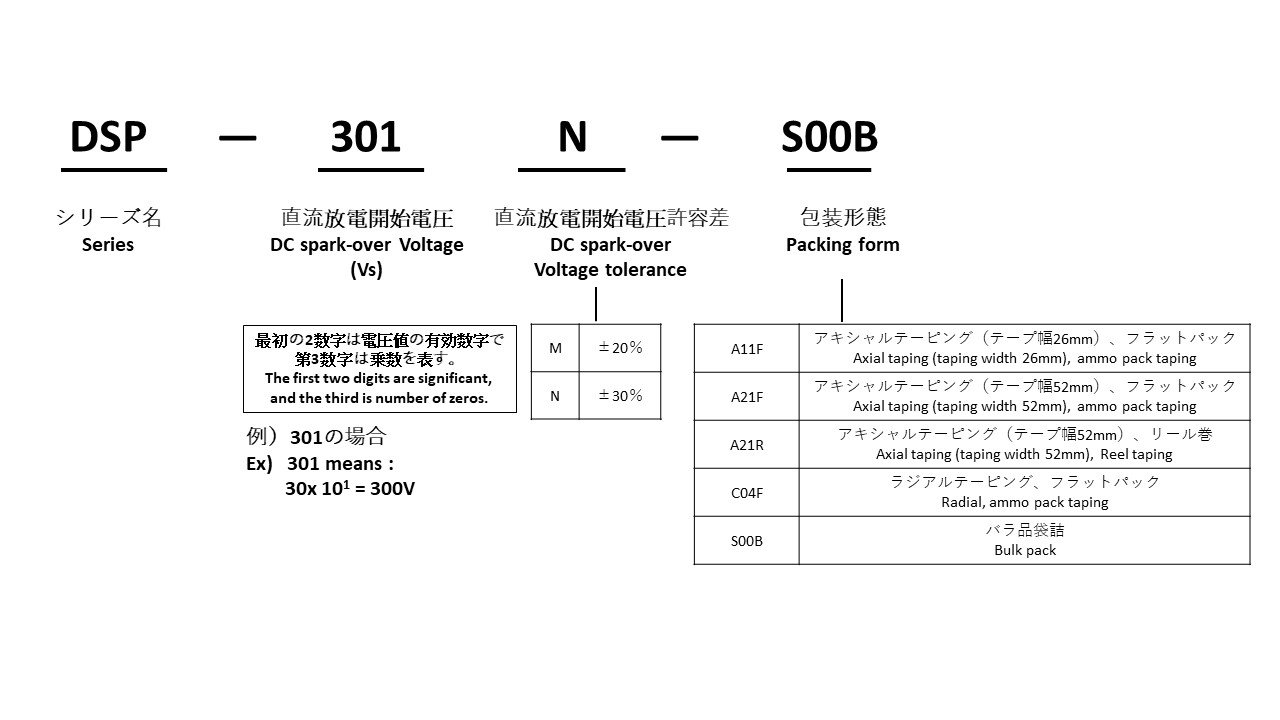

Part number system
Characteristics
| Part Number | DC spark-over voltage (Vs) |
Insulation resistance (IR) |
Electrostatic capacitance 1kHz-6V max. |
Surge life test. |
|
|---|---|---|---|---|---|
| DSP-141N | 140V (98〜182) | ≧100MΩmin. | DC 50V | ≦1pF max. | 1500pF-0Ω-10kV 200 times |
| DSP-201M | 200V (160〜240) | DC 100V | |||
| DSP-301N | 300V (210〜390) | ||||
| DSP-501N | 500V (350〜650) | DC 250V | |||
| DSP-751N | 750V (525〜975) | ||||
Applications
