CSA20 Series
The CSA20 Series is a small, surface-mountable chip-type surge absorber that protects electronic circuits from static electricity.
Useful informationFeatures
- ESD surge absorber in a compact surface mount package
- Can be used with flow or reflow solder
- Microgap technology gives excellent surge response
- Can use in high frequency circuits due to low capacitance
- High insulation resistance characteristics
- Available in embossed taping
- Conforms with IEC61000-4-2 standard
- Operating temperature limit : -40 ~ 125°C
- Storage Temperature Range : -55 ~ 125°C

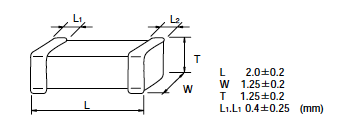

Dimensions
Weight：0.01g
Manufacturing Site：JAPAN
Part number system
Characteristics
| Part Number | DC spark-over voltage Vs |
Insulation resistance IR |
Electrostatic capacitance 1kHz-6V max. |
Surge life test (Contact discharge) |
|
|---|---|---|---|---|---|
| CSA20-141N | 140V(98〜182） | ≧100MΩmin. | DC 50V | ≦1pF max. | 150pF-330Ω-20kV 20 times |
| CSA20-401Q | 400V(320〜520） | DC 250V | |||
About IEC61000-4-2
- Electrostatic discharge immunity test
- 150pF-330Ω-
- 2~8kV (Contact discharge)
- 2~15kV (Air discharge)
CSA20 Series is easily able to meet requirements of IEC61000-4-2.

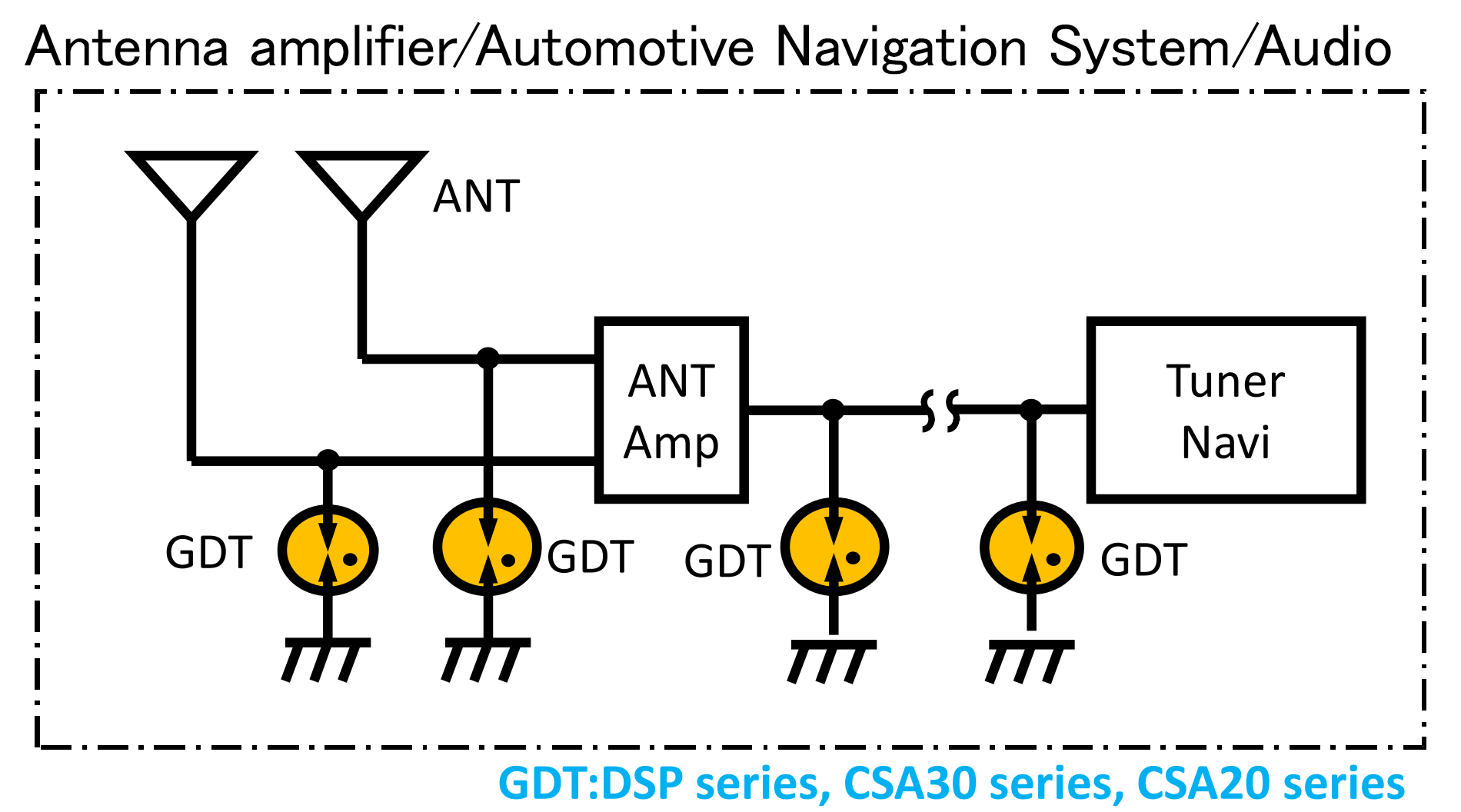

Applications
