Surge CountermeasuresSURGE ABSORBERS

Consulting and Test Services for the following

Mitsubishi Materials is pleased to offer customers surge absorber countermeasure solutions.

  • During development, the product cannot pass UL inspection.
  • The product has been damaged by lightning and you'd like to take preventative measures.

Because conditions differ depending on the development model/product variation, it is beneficial to perform actual surge tests.

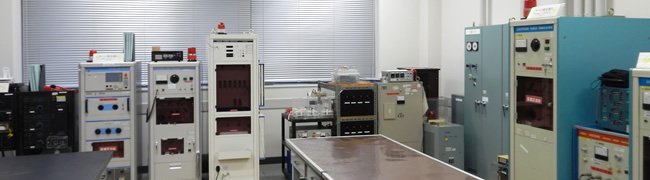

At the Mitsubishi Materials Ceramics Factory, our engineers, in attendance with the customer, can perform surge tests on a product and offer surge counter-measure solutions. If the customer is unavailable or unable to attend, there is also an option to have the product sent and tested by our engineers alone. Once the test is complete, we can quickly return the product along with a detailed report on the counter-measure solutions.

At our Ceramics factory, it is possible to base the testing on a variety of standards, including IEC61000-4-2,IEC61000-4-5,JEC,JIS,UL ,ITU-T and more.

Please contact your sales representative with any problems you may have.

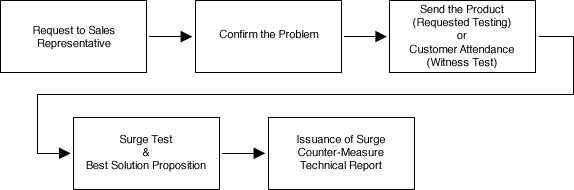

Surge Test Service Flow

Available Standards and Waveforms

Test Standard Standard Detail Wave Form
Surge Test

Electromagnetic compatibility (EMC) - Part 4-5:
Testing and measurement techniques - Surge immunity test

●Combination Wave

JEC 0202

●Voltage Wave

●Electric Current Wave
ITU-T K.20 Resistibility of telecommunication equipment installed in a telecommunications centre to overvoltages and overcurrents ●Voltage Wave
ITU-T K.21 Resistibility of telecommunication equipment installed in customer premises to overvoltages and overcurrents
IEC61643-311 Components for low-voltage surge protective devices - Part 311: Specifications for gas discharge tubes (GDT) ●Electric Current Wave
Electricity Test

Electromagnetic compatibility (EMC) - Part 4-2:
Testing and measurement techniques - Electrostatic discharge immunity test

●ESD Wave
Maximum Voltage Applied:〜30kV
C Unit :100p〜500pF
Arc Resistance:150Ω〜10kΩ
ISO10605 Road vehicles. Test methods for electrical
disturbances from electrostatic discharge (British Standard)
JASO D001 General rules of environmental testing methods for automotive electronic equipment
JASO D010 Road vehicles and automotive Parts - Electrical disturbances from electrostatic discharges
Noise Simulation JEC 0103 ●Pulse Voltage Wave
Maximum Voltage Applied:4kV
Pulse Amplitude:50ns〜1,000ns
Fast Transient
Vast Test
IEC61000-4-4 Electromagnetic compatibility (EMC) - Part 4-4:
Testing and measurement techniques - Electrical fast transient/burst immunity test

●Vast Immunity Test
1) Pulse Repetition:
Vast Duration:
Vast Repetition:
2) Vast Repetition:
Vast Duration:
Vast Repetition:

Please inquire for tests other than those above.
