CSA30 Series
The CSA30 Series is a chip-type surge absorber that is compatible with surface mounting and protects electronic circuits from static electricity.
Useful informationFeatures
- ESD surge absorber in a compact surface mount package
- Can be used with flow or reflow solder
- Microgap technology gives excellent surge response
- Can use in high frequency circuits due to low capacitance
- High insulation resistance characteristics
- Available in embossed taping
- Conforms with IEC61000-4-2 standard
- Operating temperature limit : -40 ~ 125°C
- Storage Temperature Range : -55 ~ 125°C

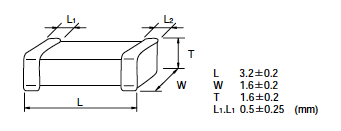

Dimensions
Weight：0.02g
Manufacturing Site：JAPAN

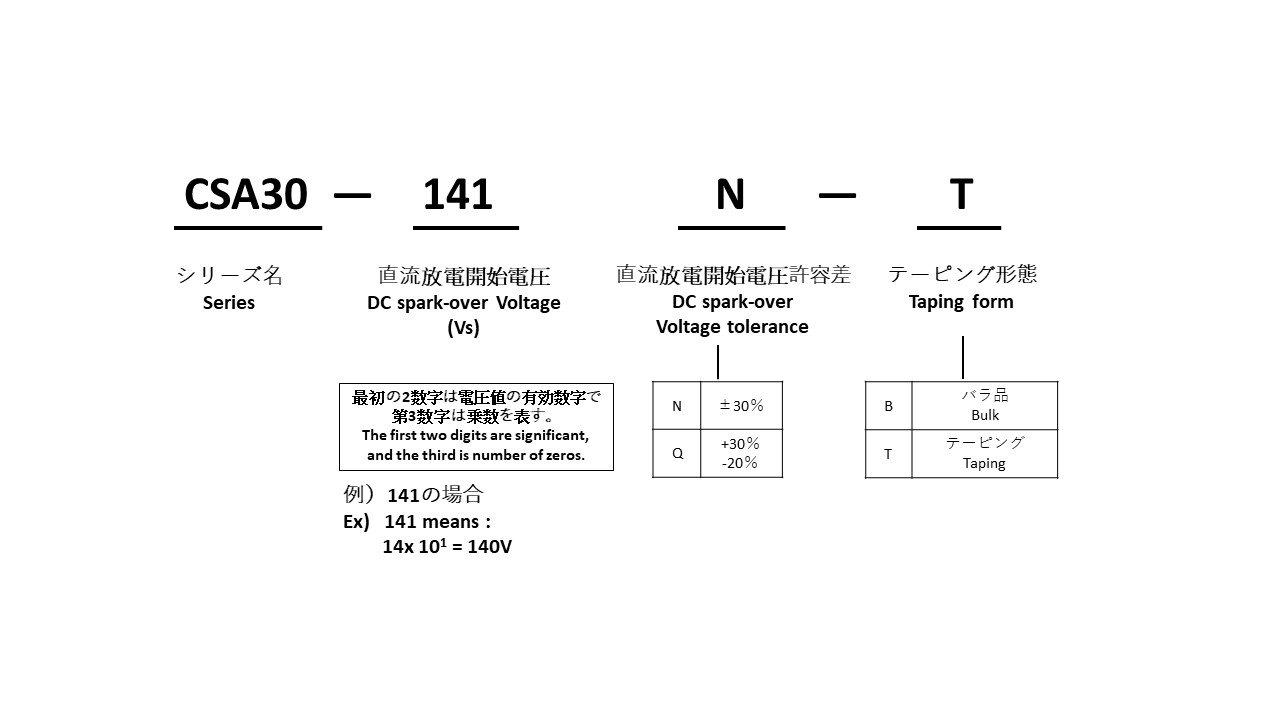

Part number system
Characteristics
| Part Number | DC spark-over voltage Vs |
Insulation resistance IR |
Electrostatic capacitance 1kHz-6V max. |
Surge life test (Contact discharge) |
|
|---|---|---|---|---|---|
| CSA30-141N | 140V(98〜182） | ≧10MΩmin. | DC 50V | ≦1pF max. | 150pF-330Ω-25kV 20 times |
| CSA30-401Q | 400V(320〜520） | DC 250V | |||
About IEC61000-4-2
- Electrostatic discharge immunity test
- 150pF-330Ω-
- 2~8kV (Contact discharge)
- 2~15kV (Air discharge)
CSA30 Series easily able to meet requirements of IEC61000-4-2.
