DE37 Series
The DE37 Series has excellent surge response characteristics using micro gaps.

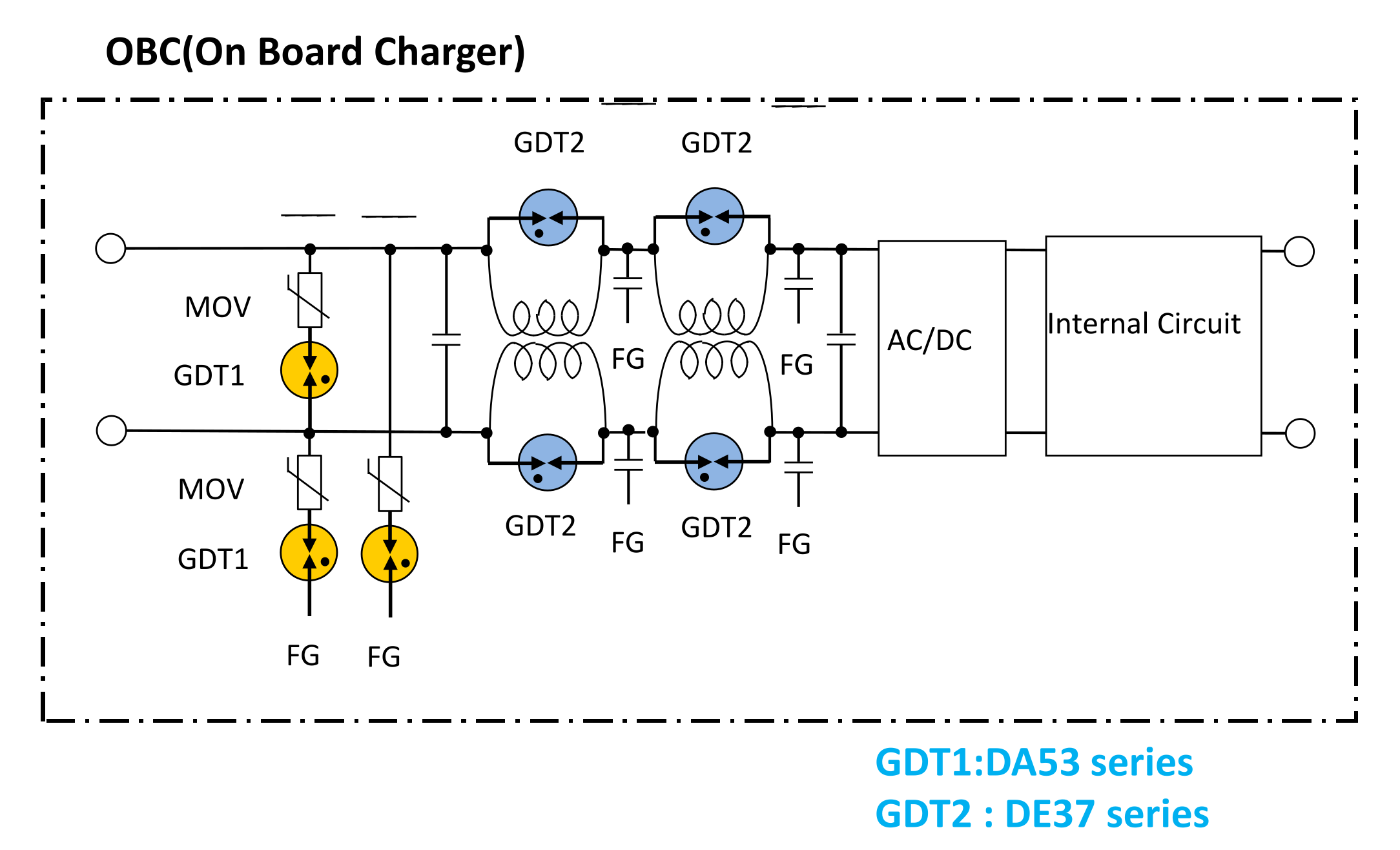

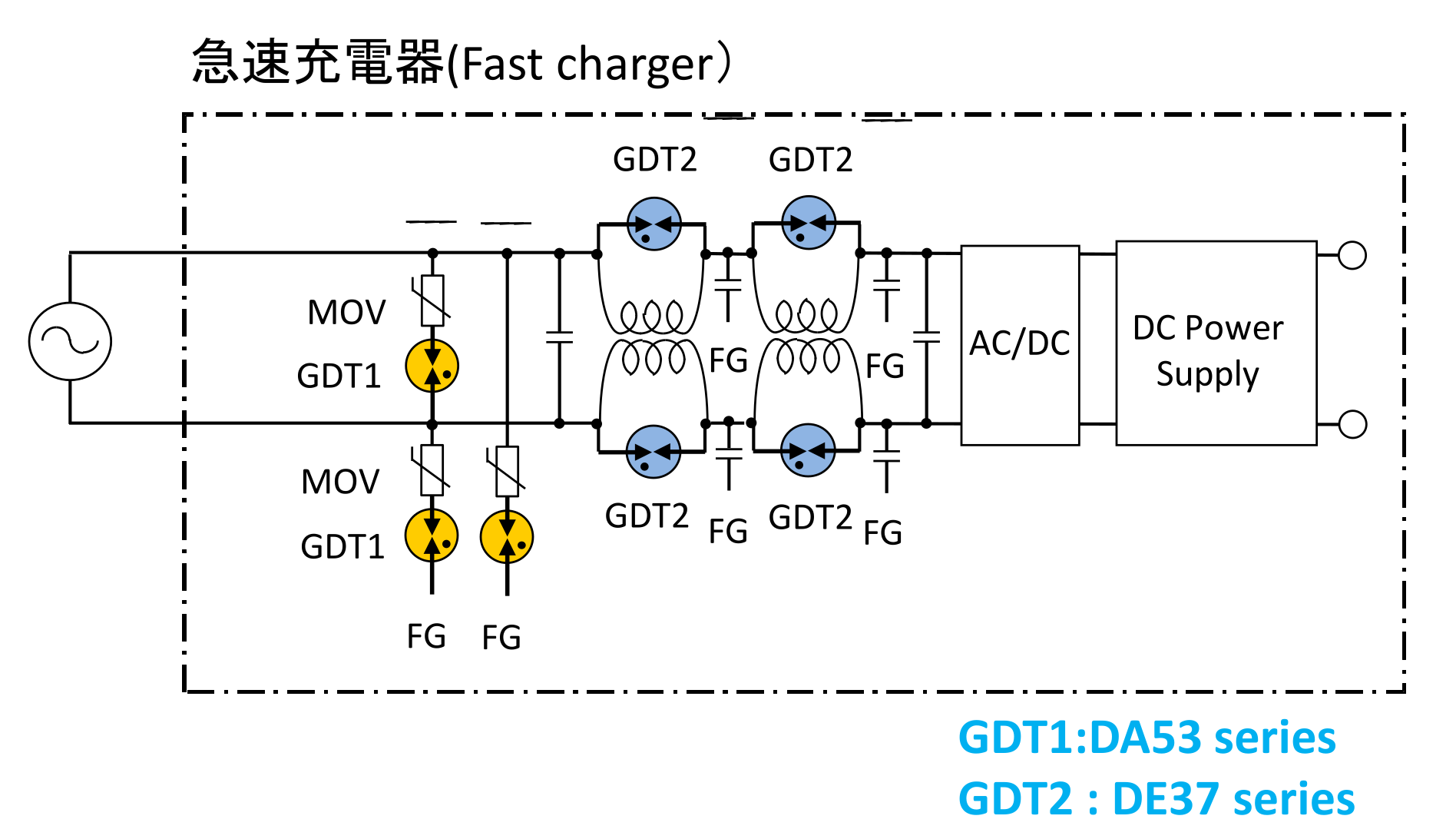

Useful informationFeatures
- The 5mm pitch; radial taped parts can be mounted using automatic insertion equipment (the part is lower than 15.5mm).
(except the item of over 2700V) - Also available in axial taping (the glass tube can be mounted flat using automatic insertion equipment).
- Can be used on megabit class high speed without attenuation of signal due a capacitance value of less than 1pF.
- Superior surge response characteristics due to microgap technology.
- High insulation resistance of over 100MΩ.
- Operating temperature limit : -40 ~ 85°C
- Storage Temperature Range : -55 ~ 125°C

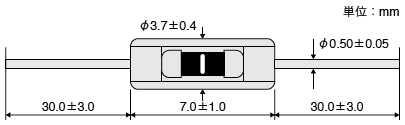

Dimensions
Weight:0.29g
Manufacturing Site:THAILAND

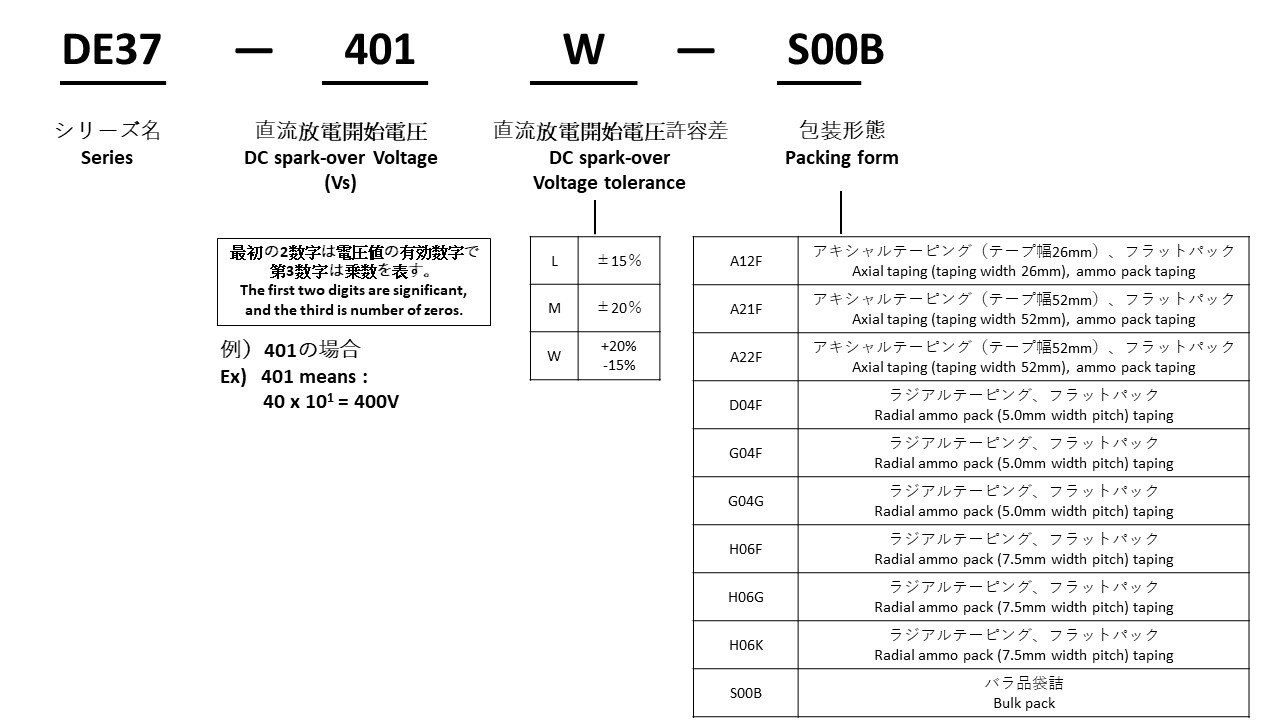

Part number system

Characteristics
Part Number | DC spark-over voltage (Vs) |
Insulation resistance (IR) |
Electrostatic capacitance 1kHz-6V max. |
Surge current capacity 8/20μsec. |
Surge life test 8/20μ sec. 100A |
|
---|---|---|---|---|---|---|
DE37-301L | 300V(255~345) | ≧100MΩmin. | DC 100V | ≦1pF max. | 1500A | 300times |
DE37-351M | 350V(280~420) | DC 250V | ||||
DE37-401W | 400V(340~480) | |||||
DE37-501M | 500V(400~600) | |||||
DE37-102M | 1,000V(800~1,200) | DC 500V | ||||
DE37-272M | 2,700V(2,160~3,240) | 200times | ||||
DE37-302M | 3,000V(2,400~3,600) | |||||
DE37-362M | 3,600V(2.880~4.320) | |||||
DE37-452M | 4,500V(3,600~5,400) | DC 1000V |
Part Number | Withstanding voltage |
UL recognized | cUL規格認定品 | EN recognized | |
---|---|---|---|---|---|
UL 497B File No. E175280 |
UL1449 File No. E318314 |
CSA C22.2No.269 UL File No. E318314 |
EN62368-1 TÜV. Report No. J50164439 |
||
DE37-301L | – | ○ | - | - | - |
DE37-351M | – | ○ | - | - | - |
DE37-401W | – | ○ | - | - | - |
DE37-501M | – | ○ | - | - | - |
DE37-102M | – | – | – | - | – |
DE37-272M | AC1,000V-1min. AC1,200V-3sec |
– | ○ 1) | ○ 1) | - |
DE37-302M | AC1,500V-1min. | – | ○ 2) | ○ 2) | ○ 3) |
DE37-362M | AC1,800V-3sec | – | ○ 2) | ○ 2) | ○ 3) |
DE37-452M | AC2,000V-1min. | – | ○ 2) | ○ 2) | ○ 3) |
- Approved if used with a varistor (125VAC : V1mA ≧ 270V, φ≧ 5mm) electrically connected in Series.
- Approved if used with a varistor (125VAC : V1mA ≧ 270V, φ≧ 5mm ; 250VAC : V1mA ≧ 470V, φ≧ 5mm) electrically connected in Series.
- Approved if used with a varistor (V1mA ≧ 470V, φ≧ 5mm) electrically connected in Series.
- Safety standard certification conditions may be revised. Would you confirm the web site of each standard about the latest information.
Clicking on the "〇" in the table will display the homepage for each standard.
Basic Conditions for ITU-T K.20
- Surge Test
10/700μs, 1.5kV/4kV (25Ω), 5 times.
- AC Induced Test
AC600V (600Ω), 1sec., 5 times.
- AC Cross Test
AC230V(10〜1000Ω), 15min.
(however, AC230 is too low for the DE37-401W to react)
