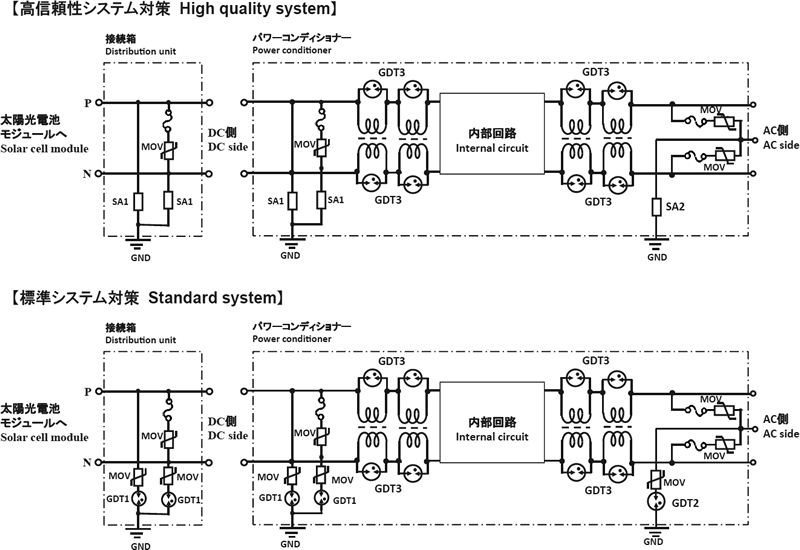

Photovoltaics SystemSURGE ABSORBERS
Recommended parts
| Open circuit voltage | High quality system | Standard system | ||||
|---|---|---|---|---|---|---|
| SA1 | SA2 | GDT3 | GDT1 | GDT2 | GDT3 | |
| DC100V | DSAHR-1 | AC125V: DSAHR-1 AC250V: DSAHR-3 AC400V: DSAHR-5 |
DA53-501M | DSA-301LA | AC125V: DE37-301L DSA-301LA AC250V: DE37-501M DSA-501MA AC400V: DE37-102M CDA70-102M DSA-102MA |
DE37-301L CSA70-301L |
| DC250V | DSAHR-3 | DSA-501MA | ||||
| DC450V | DSAHR-4 | DSA-701MA DA53-701M CDA70-701M |
||||
| DC600V | DSAHR-5 | DSA-102MA CDA70-102M |
||||
| DC750V | - | DSA-152MA | ||||
| DC1,000V | - | DSA-152MA | ||||
| DC1,500V | - | DSA-282MA DA53-272M CDA70-272M |
||||
| DC2,000V | - | DSA-302MA DA53-302M CDA70-302M |
||||
