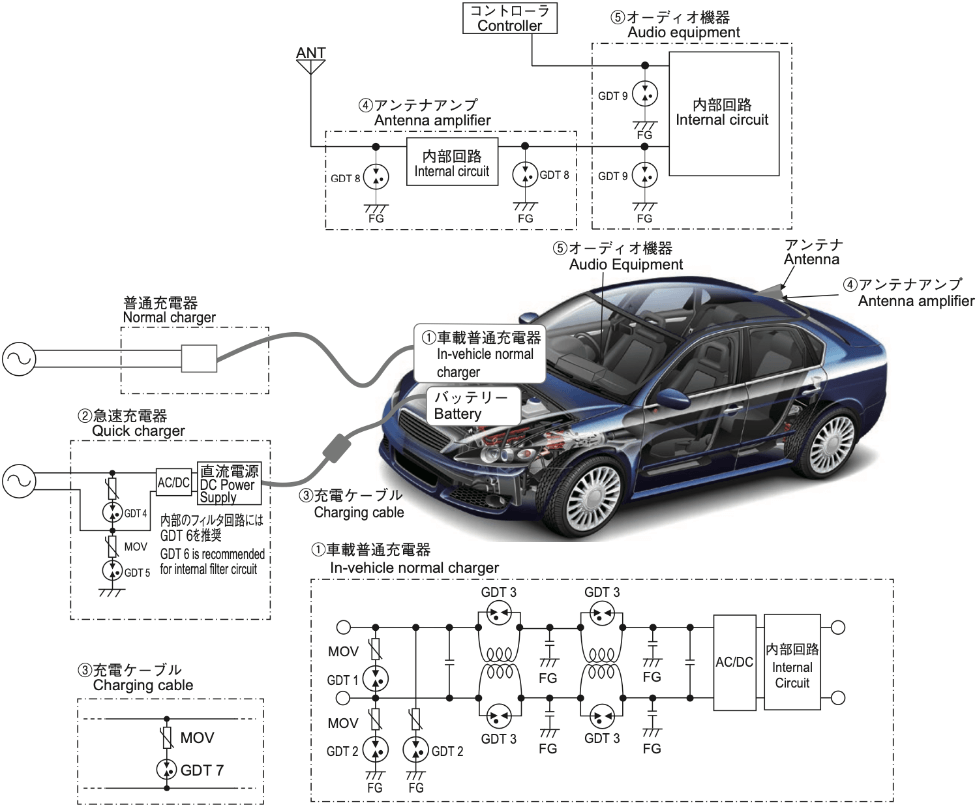

AutomotiveSURGE ABSORBERS

Resonance Countermeasures Three-Phase Power Supply

Recommended parts

1) BMU

Withstanding voltage GDT1 Line to line GDT2 Line to GND GDT3 Resonance Countermeasures
- DA53-501M DA53-501M DE37-301L
AC1,000V-1min.
AC1,200V-3s
DA53-272M
AC1,500V-1min. DA53-302M
AC1,800V-3s DA53-362M

2) Quick charger (In the case of input AC200 V)

Withstanding voltage GDT4 Line to line GDT5 Line to GND GDT6 Resonance Countermeasures
- DA53-501M DA53-501M DE37-301L
AC1,500V-1min. DA53-302M
AC1,800V-3s DA53-362M

3) Charging cable(In the case of input DC500V)

GDT7 Line to line
Lead type DA53-701M

1)BMU

GDT8,9
SMD type CSA30-141N, CSA20-141N
Lead type DSP-141N, DSP-201M
Resonance Countermeasures Three-Phase Power Supply
