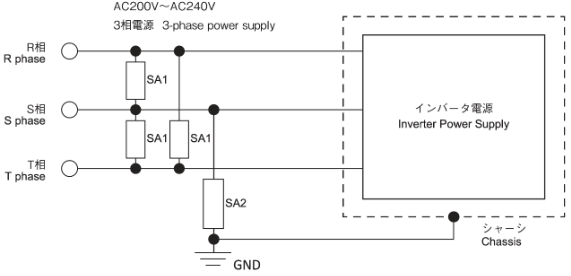

Three-Phase Power SupplySURGE ABSORBERS

Automotive AC/DC Adapter

※ Example of a dielectric withstanding voltage test carried out at a voltage of AC1,500V applied between the R.S.T phase and the ground.

Recommended parts

Combination type Component type
GDT MOV
SA1 DSANR-3 DSA-501MA-05 220V~270V(φ10)
SA2 DSANR5 DSA-302MA-05 470V~680V(φ10)
