VH05 Series
The VH Series are wire-bondable flake style NTC Thermistors.

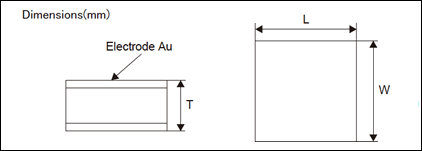

Useful informationDimensions (mm)
| Series | Part Number | L | W | T |
|---|---|---|---|---|
| VH05 | 6D103 | 0.32±0.05 | 0.32±0.05 | 0.20 max. |
| 6D123 | 0.32±0.05 | 0.32±0.05 | 0.23 max. |
Specifications
| Resistance tolerance | ±1%±2%±3%(RT) |
|---|---|
| B Value tolerance | ±1%(B25/50) |
| Operating temperature range | -40℃~+125℃ |
| Heat Dissipation Constant | 0.15mW／℃ |
| Maximum Power Dissipation | 15mW |
Features
- Small precision type
- Long-life Reliability
- Excellent solderability,bondability
- Excellent stability against Au/Sn soldering process(about 350℃)
Characteristics
| Part Number | Resistance RT |
Resistance Tolerance | B Value B25/50 |
R-T DATA | |||
|---|---|---|---|---|---|---|---|
| ±1% | ±2% | ±3% | CSV | ||||
| 6D103 | R25=10kΩ | ○ | ○ | ○ | 3,930K |  |
 |
| 6D123 | R30=10kΩ | ○ | ○ | ○ | 3,930K | |
|
Recommended Soldering Profile
VH Series Au/Sn Solder mounting
Solder:Au/Sn(79/21)Preform
Mounting device : Die bonder
Mounting Temperature : 320°C
Atmosphere : N2
- Please keep exposure to temperature exceeding 280°C to under 10seconds.
- After soldering,do not force cool,allow the parts to cool gradually.
- Please contact us about scrubbing procedures.
