BN35 Series
The BN35 Series are leaded NTC Thermistor ideal for automotive ECUs.

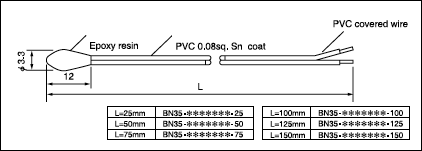

Useful informationDimensions(mm)
Specifications
| Operating temperature range | -20℃～+80℃ |
|---|---|
| Heat Dissipation Constant | δ=2.4mW/℃ |
| Thermal Time Constant | τ＝40sec. |
| Maximum Power Dissipation | P=132mW |
*It is available in a UL1434 approved type for BN35 Series.
*Safety standard certification conditions may be revised. Would you confirm the web site of each standard about the latest information.
Characteristics
| Part Number | Resistance | B Value B25/50 |
B Value B25/85 |
R-T DATA | ||||
|---|---|---|---|---|---|---|---|---|
| R25 | Resistance tolerance | |||||||
| ±1% | ±2% | ±3% | CSV | |||||
| 3H103 | 10kΩ | ○ | ○ | ○ | 3,450K±1% | 3,486K |  |
 |
| 3T103 | 10kΩ | ○ | ○ | ○ | 3,950K±1% | 3,989K | |
|
| 3U104 | 100kΩ | ○ | ○ | ○ | 3,950K±1% | 4,024K | |
|
| 5B225 | 2.2MΩ | - | - | ○ | 5,200K±3% | 5,290K | |
|
