FeaturesPLATING

Green Actions

Mitsubishi Materials offers plating chemicals which enable flat and smooth bump with minimal variations in height and composition.

As a representative example, High Speed type of Tin-Silver plating chemical TS-507 can form flat and smooth bump in a wafer with minimal variations in height and composition even at high deposition rate of 3.5-7.5(μm/min).

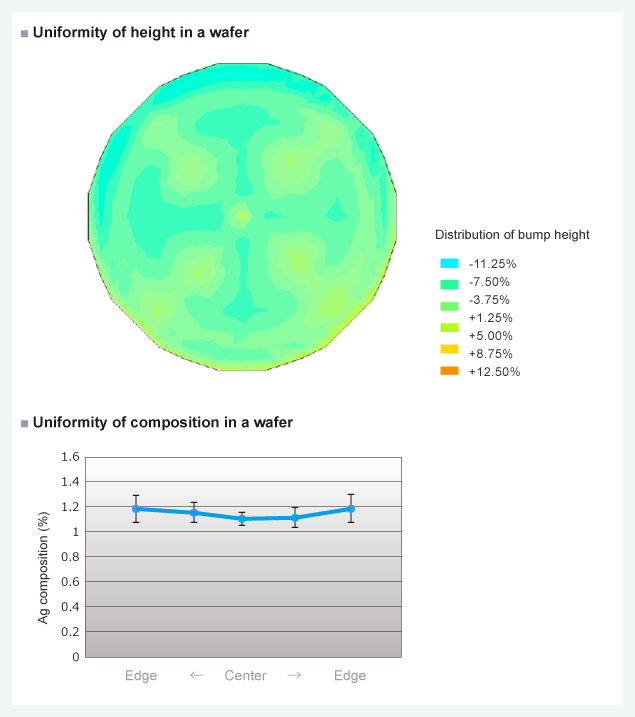

Uniformity of height in a wafer

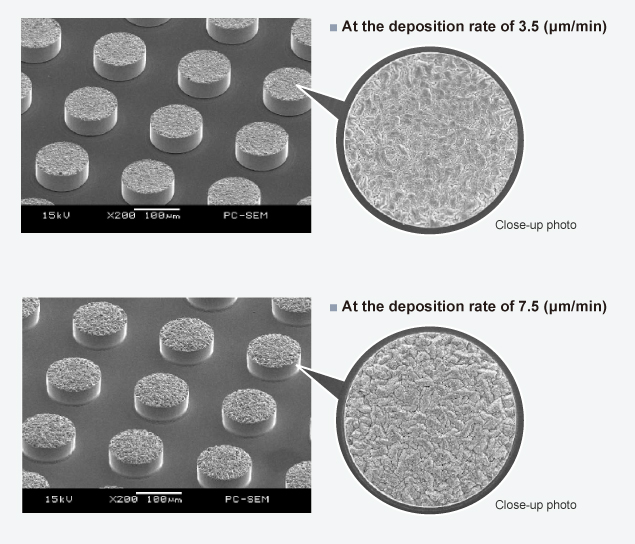

Appearance of bumps

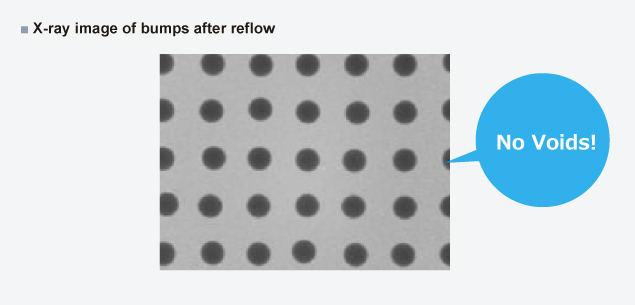

X-ray image of bumps after reflow
