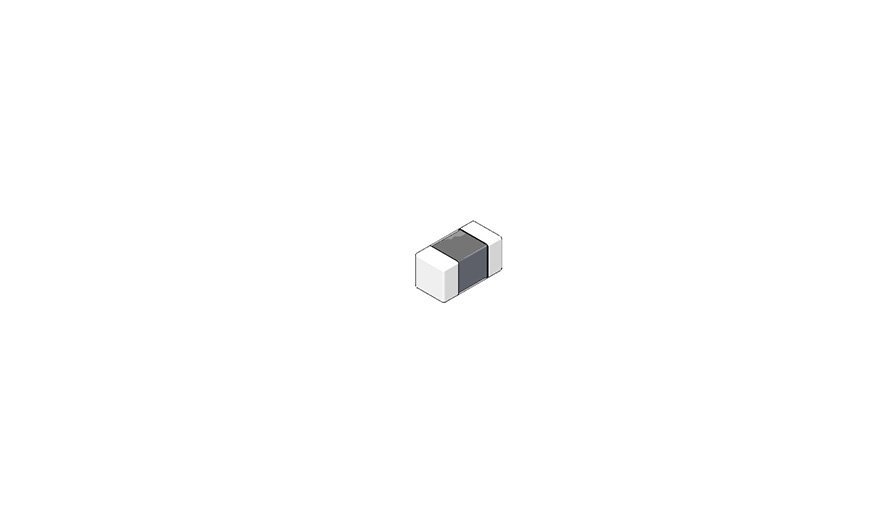

TH03 Series
The TH Series are accurate surface mount NTC Thermistor.
Useful informationSpecifications
| Dimensions | 0.6×0.3×0.34max(mm) |
|---|---|
| Resistance tolerance | ±1%、±2%、±3% (R25) |
| B Value tolerance | ±1% (B25/50) |
| Termination | Tin plating |
| Operating temperature range | -40℃~+125℃ |
| Heat Dissipation Constant | 1.5mW/℃ |
| Maximum Power Dissipation | 150mW |
Features
- High precision (±1%).
- Ultra-small size.
- Glass covered body for high reliability
- Tough against electrostatic discharge.
- Applications include battery packs (Li-Ion, NiMH and similar)
Characteristics
| Part Number | Resistance R25 |
B Value B25/50 |
B Value B25/85 |
R-T DATA | |
|---|---|---|---|---|---|
| CSV | |||||
| 3H103 | 10kΩ | 3,380K | 3,395K |  |
 |
| 4F104 | 100kΩ | 4,250K | 4,230K | |
|
