MH18 Series
The MH18 Series are highly accurate high temperature MELF NTC Thermistors.

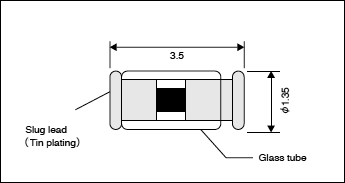

Useful informationDimensions (mm)
Specifications
| Resistance tolerance | ±3%±5%(R25) |
|---|---|
| B Value tolerance | ±3%(B25/50) |
| Operating temperature range | -40℃~+150℃ |
| Heat Dissipation Constant | 2.0mW／℃ |
| Maximum Power Dissipation | 250mW |
Features
- Suitable for high temperature applications.
- Excellent choice for harsh environments.
- High precision (±1%) for MH18 Series
Characteristics
| Part Number | Resistance | B Value B25/50 |
B Value B25/85 |
R-T DATA | ||||
|---|---|---|---|---|---|---|---|---|
| R25 | Resistance tolerance | CSV | ||||||
| ±1％ | ±2％ | ±3％ | ||||||
| 3G202 | 2kΩ | ○ | ○ | ○ | 3,470K | 3,507K |  |
 |
| 3G302 | 3kΩ | ○ | ○ | ○ | 3,470K | 3,507K | |
|
| 3G502 | 5kΩ | ○ | ○ | ○ | 3,470K | 3,507K | |
|
| 3H103 | 10kΩ | ○ | ○ | ○ | 3,465K | 3,502K | |
|
| 6E203 | 20kΩ | ○ | ○ | ○ | 3,965K | 4,016K | |
|
| 6P303 | 30kΩ | ○ | ○ | ○ | 3,948K | 3,984K | |
|
| 6H503 | 50kΩ | ○ | ○ | ○ | 3,770K | 3,820K | |
|
| 3U104 | 100kΩ | ○ | ○ | ○ | 3,965K | 4,038K | |
|
| 3U154 | 150kΩ | ○ | ○ | ○ | 3,965K | 4,038K | |
|
