BM38 Series

※ For BM38, low - halogen is also applied.

The BM38 Series are radial leaded NTC Thermistors for rechargeable battery packs.

Useful information

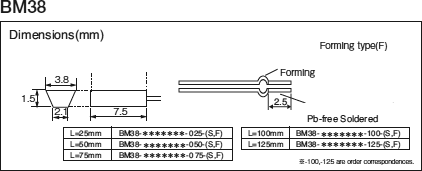

Dimensions(mm)

Specifications

Operating temperature range -40℃〜+100℃
Heat Dissipation Constant δ=1.3mW/℃
Thermal Time Constant τ=25sec.
Maximum Power Dissipation P=97.5mW

Characteristics

BM38 Series
Part Number Resistance B Value
B25/50
B Value
B25/85
R-T DATA
R25 Resistance tolerance
±1% ±2% ±3% PDF CSV
3H103 10kΩ 3,450K±1% 3,486K

*It is available in a UL1434 approved Part Number for BM38. (File No. E318570)
*Safety standard certification conditions may be revised. Would you confirm the web site of each standard about the latest information.
