EAZR Series
The EAZR Series is a surge suppression component with high surge resistance that protects electronic circuits from abnormal voltages on power lines.
Useful informationFeatures
- Board-mounted surge countermeasures for equipment that require a large surge tolerance
- 8/20μs maximum surge current : 10,000A
- Compatible with 125 or 250VAC
- This single component can provide complete power surge protection
- Responds quickly for lightning and other quick surges
- Can withstand many surges without failing
- Operating temperature limit :-25~85°C
- Storage Temperature Range :-40~125°C
Applications
- Office and measuring equipment
- Inverters, CNC, factory automation and other
- Solar inverter, power condition, outdoor LED lights

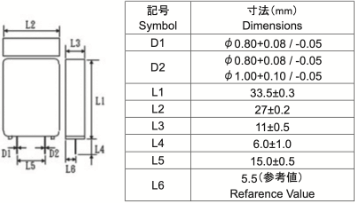

Dimensions and Packing form
Weight:4.60g
Manufacturing Site:JAPAN

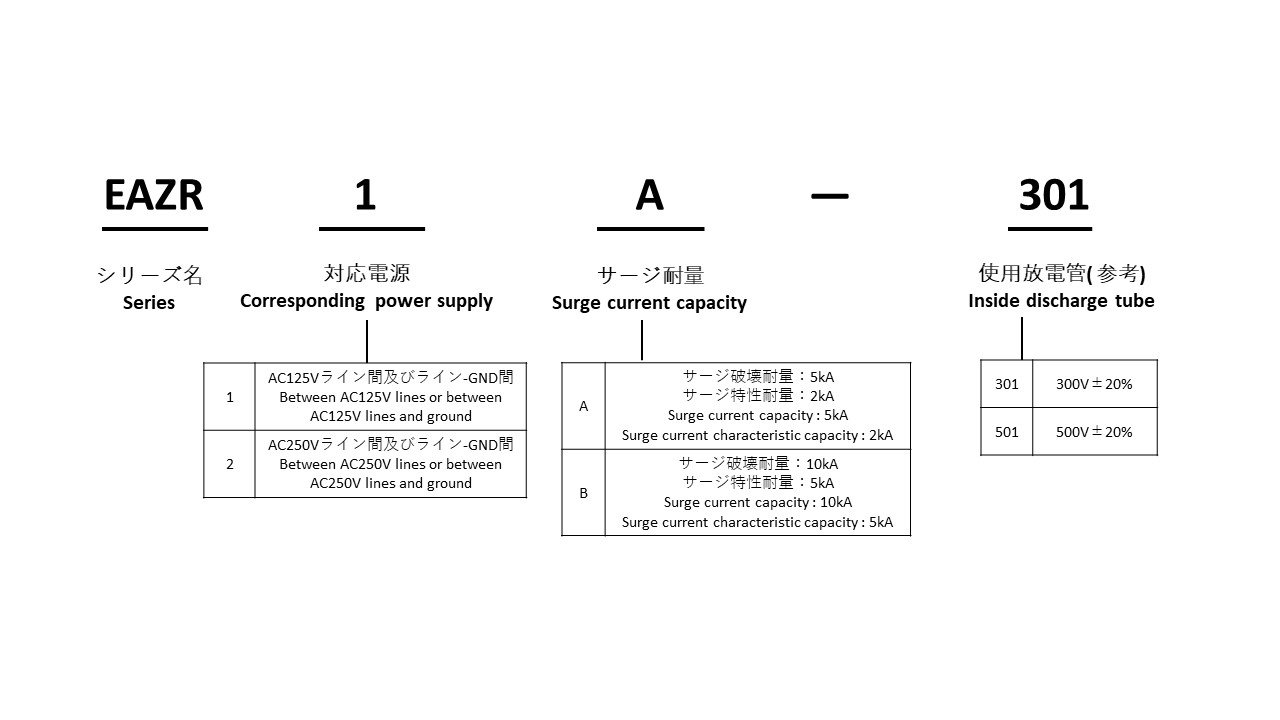

Part number system
Characteristics
Rated voltaage |
Part Number | Maximum continuous operating voltage |
Insulation resistance IR |
Electrostatic capacitance 1kHz-6V max C |
|
---|---|---|---|---|---|
AC 125V | EAZR 1A-301 | AC150V | ≧100MΩ. | DC 100V | ≦2pF |
AC 125V | EAZR 1B-301 | DC 100V | |||
AC 250V | EAZR 2A-501 | AC250V | DC 250V | ||
AC 250V | EAZR 2B-501 | DC 250V |
Part Number | Surge current characteristic capacity |
Surge current capacity |
Surge life test. 8/20μsec. 100A |
Voltage protection level 1) |
UL recognized | cUL recognized |
---|---|---|---|---|---|---|
UL1449 File No. E318314 |
CSA C22.2 No.269 FileNo.E318314 |
|||||
EAZR 1A-301 | 2kA(8/20μs) | 5kA(8/20μs) | 300 times | 1.2kV | ○ | ○ |
EAZR 1B-301 | 5kA(8/20μs) | 10kA(8/20μs) | 1.5kV | ○ | ○ | |
EAZR 2A-501 | 2kA(8/20μs) | 5kA(8/20μs) | 1.8kV | ○ | ○ | |
EAZR 2B-501 | 5kA(8/20μs) | 10kA(8/20μs) | 2.5kV | ○ | ○ |
- Surge current characteristic capacity : 8/20 μs
- Safety standard certification conditions may be revised. Would you confirm the web site of each standard about the latest information.
Clicking on the "〇" in the table will display the homepage for each standard.
