STS-74New

The STS-74 is a ring-tongue NTC Thermistor for measuring surface temperatures.

Useful information

Features

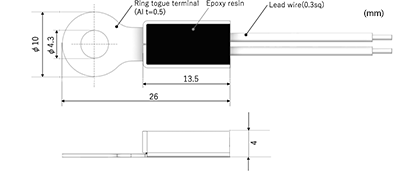

Dimensions(mm)

Specifications

Resistance R25=10kΩ±1%
B Value B25/50=3380K±1%
Operating temperature range −40℃〜+120℃
Thermal Time Constant (contact with hot plate) 3sec±1.5sec

Characteristics

Resistance R25 B Value B25/50
10kΩ 3380K
