STS-73
The STS-73 is a ring-tongue NTC Thermistor for measuring surface temperatures.

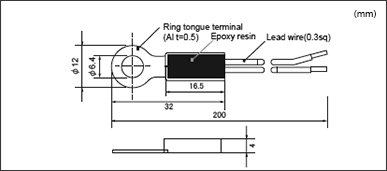

Useful informationDimensions(mm)
Features
- Ring-tongue is very easy to mount.
- Extremely reliable due to our chip type thermistor being used.
- Quick response due to unique constrnction.
Characteristics
| Resistance | R25＝10kΩ±3％ |
|---|---|
| B Value (3HG) | B25/50＝3380K±3％ |
| Operating temperature range | -40℃~+120℃ |
| Thermal Time Constant(direct connection) | 5sec. |
| R-T DATA | |
|---|---|
| CSV | |
 |
 |
*Please consult us regarding the operating conditions of Thermistor Sensors.
