STS-51
The STS-51 is a ring-tongue NTC Thermistor for measuring surface temperatures.

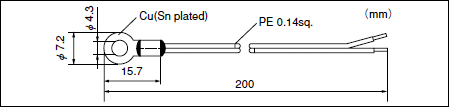

Useful informationDimensions(mm)
Features
- Can be fastened with a screw.
- Metal contact surface yields fast temperature response.
Characteristics
| Resistance | R25＝10kΩ±5％ |
|---|---|
| B Value (3TV) | B25/50＝3820K±3％ B25/85＝3792K |
| Operating temperature range | -40℃~+150℃ |
| Thermal Time Constant(on Al block) | 27sec. |
| R-T DATA | |
|---|---|
| CSV | |
 |
 |
*Thermal Time Constant of STS Series is measured by following method.The data contains the influence of the heat capacity of the aluminum block.
*The sensor is screwed up on aluminum block (120L×120W×20Tmm),the block except sensor attached surface is put into 25°C water. From this state when block is moved into 50°C water.
*Please consult us regarding the operating conditions of Thermistor Sensors.
