STS-50

The STS-50 is a ring-tongue NTC Thermistor for measuring surface temperatures.

Useful information

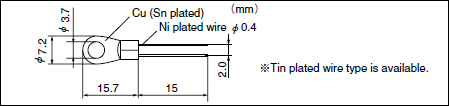

Dimensions(mm)

Features

Characteristics

Resistance R25=10kΩ±3%
B Value (3HG) B25/50=3465K±3%
B25/85=3502K
Operating temperature range -40℃~+150℃
Thermal Time Constant(on Al block) 22sec.

R-T DATA
PDF CSV
