STS-40

The STS-40 is a ring-tongue NTC Thermistor for measuring surface temperatures.

Useful information

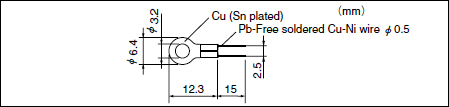

Dimensions(mm)

Features

*Thermal Time Constant of STS Series is measured by following method.The data contains the influence of the heat capacity of the aluminum block.
*The sensor is screwed up on aluminum block (120L×120W×20Tmm),the block except sensor attached surface is put into 25°C water. From this state when block is moved into 50°C water.
*Please consult us regarding the operating conditions of Thermistor Sensors.

Characteristics

Resistance R25=10kΩ±1%
B Value (3H) B25/50=3450K±1%
B25/85=3486K
Operating temperature range -30℃~+110℃
Thermal Time Constant(on Al block) 18sec.

R-T DATA
PDF CSV
