Coolant Temperature Sensor (Metal Case)
The Liquid/Coolant Temperature Sensor is a NTC Thermistor for automotive applications.

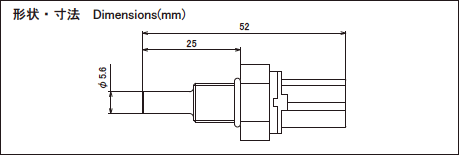

Useful informationDimensions(mm)
Features
- Integrated waterproof connector sensor
- Precise temperature measuring
- Quick response (6 sec)
- Tough against extreme heat cycling and vibration
- Double molding makes for airtight construction
Applications
- Electronic fuel injection for motorcycles or automobiles
- Measuring coolant temperature
- Measuring liquid temperature for industrial or household applications
Characteristics
| Operating temperature | -30℃～+120℃ (sensor area) |
|---|---|
| Resistance | R100=0.156kΩ |
| B-Value | B50/100=3824K |
| Thermal Time Constant | τ=6sec (in stirred water) |
*Shape, characteristics, among others is customizable.
