Intake Air Temperature Sensor
The Intake Air Temperature Sensor is a automotive air temperature sensor with an integrated connector.

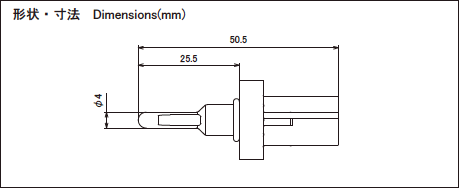

Useful informationDimensions(mm)
Features
- Integrated waterproof connector sensor
- Easy and reliable attaching with screws
- Precise temperature measuring
- Quick response (6 sec)
- Tough against extreme heat cycling and vibration
- Double molding makes for airtight construction
Applications
- Electronic fuel injection for motorcycles or automobiles
- Measuring air intake temperature for industrial or household applications
Characteristics (example)
| Operating temperature | -30℃～+120℃ |
|---|---|
| Resistance | R100=0.1553kΩ |
| B-Value | B50/100=3,854K |
| Thermal Time Constant | τ=6sec (in stirred water) |
*Shape, electrical characteristics, among others is customizable.
