ACD-45

The ACD-45 is a NTC Thermistor for measuring the temperature of air conditioner discharge pipes and similar applications.

Useful information

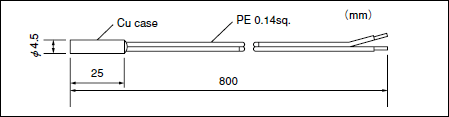

Dimensions(mm)

Features

Characteristics

Resistance R90=5kΩ±3%
B Value (3U) B25/50=3950K±3%
B25/85=4025K
Operating temperature range -30℃~+130℃
Thermal Time Constant(in water) 5sec.

R-T DATA
PDF CSV

*Please consult us regarding the operating conditions of Thermistor Sensors.
