ACA-35
The ACA-35 is a NTC Thermistor sensor for measuring air temperature in air conditioning equipment.

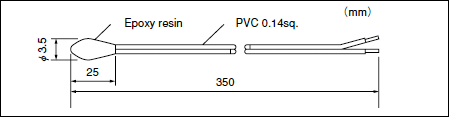

Useful informationDimensions(mm)
Features
- Moisture resistant.
- Small with quick temperature response.
Characteristics
| Resistance | R25＝15kΩ±3％ |
|---|---|
| B Value (3T) | B25/50＝3950K±2％ B25/85＝3989K |
| Operating temperature range | -30℃〜+100℃ |
| Thermal Time Constant(in air) | 50sec. |
| R-T DATA | |
|---|---|
| CSV | |
 |
 |
