ACA-30

The ACA-30 is a NTC Thermistor sensor for measuring air temperature in air conditioning equipment.

Useful information

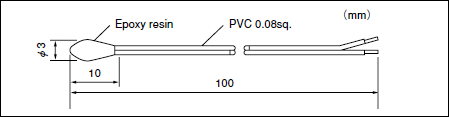

Dimensions(mm)

Characteristics

Resistance R25=5kΩ±3%
B Value (3T) B25/50=3950K±2%
B25/85=3989K
Operating temperature range -30℃〜+100℃
Thermal Time Constant(in air) 25sec.

R-T DATA
PDF CSV

*Please consult us regarding the operating conditions of Thermistor Sensors.
