RD18 SeriesNew
The RD18 Series are leaded NTC Thermistor with an insulation coating and capable of withstanding high temperature.
Useful informationFeatures
- High heat resistance(150℃)
- Small precision type
- Measures against short-circuit between wires by covering the lead wires
- Long leads for easy sensor placement.

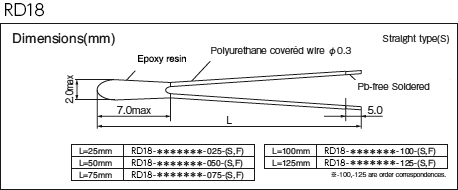

Dimensions
Specifications
| Resistance tolerance | ±1％，±2％，±3％（R25） |
|---|---|
| B Value tolerance | ±1％（B25／50） |
| Operating temperature range | -40℃〜+150℃ |
| Heat Dissipation Constant | δ=1.0mW/℃ |
| Thermal Time Constant | τ=12sec. |
| Maximum Power Dissipation | P=125mW |
Characteristics
| Part Number | Resistance Ｒ25 | B Value B25/50 | R-T DATA | |
|---|---|---|---|---|
| CSV | ||||
| 6Y103 | 10kΩ | 3370K | ||
| 3H103 | 10kΩ | 3475K | ||
| 3U104 | 100kΩ | 3950K |  |
 |
