BM18 Series
The BM18 Series are leaded NTC Thermistor for rechargeable battery packs.

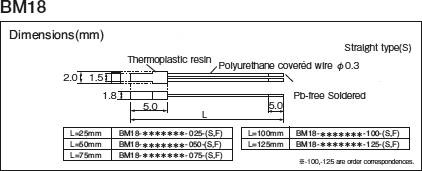

Useful informationDimensions(mm)
Specifications
| Operating temperature range | -40℃〜+100℃ |
|---|---|
| Heat Dissipation Constant | δ=1.3mW/℃ |
| Thermal Time Constant | τ＝23sec. |
| Maximum Power Dissipation | P=97.5mW |
Characteristics
| Part Number | Resistance | B Value B25/50 |
B Value B25/85 |
R-T DATA | ||||
|---|---|---|---|---|---|---|---|---|
| R25 | Resistance tolerance | |||||||
| ±1% | ±2% | ±3% | CSV | |||||
| 3H103 | 10kΩ | ○ | ○ | ○ | 3,450K±1% | 3,486K |  |
 |
*It is available in a UL1434 approved Part Number for BM18. (File No. E318570)
*Safety standard certification conditions may be revised. Would you confirm the web site of each standard about the latest information.
