RFG-70

The RFG-70 is a NTC Thermistor for refrigerators.

Useful information

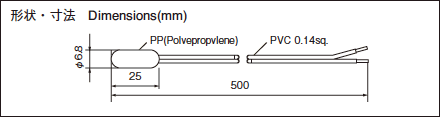

Dimensions(mm)

Features

Characteristics

Resistance R0=6.4kΩ±3%
B Value (3T) B0/25=3844K±2%
B-20/0=3840K
Operating temperature range -40℃〜+80℃
Thermal Time Constant(in water) 25sec.

R-T DATA
PDF CSV

*Please consult us regarding your specific usage of thermistor sensors.
