Non-Contact Temperature Sensor

The DNS Series are infrared non-contact temperature sensor using NTC Thermistors.

Useful information

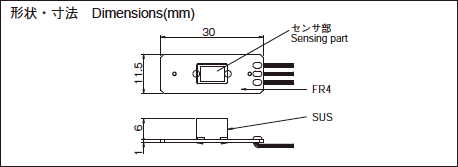

Dimensions(mm)

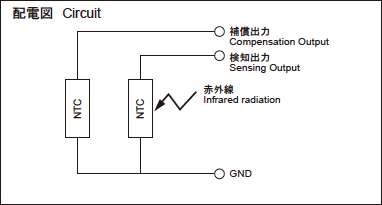

Circuit

Features

Characteristics

Thermistor Characteristics R25= 100kΩ (typ.)
B25/50= 4,250K (typ.)
Operating Temperature Range -30°C to 125°C ※2
Target temperature 0°C to 400°C ※3
Response Time (when warm) approximately 0.6 sec.※4
Sensing Angle 89.4°×107.7°

※1:Accuracy affected by type of material, area, shape, distance, and airflow
※2:Without any condensation
※3:Sensor unit must be within operating temperature range
※4:When it detects => 63.2% of black body temperature
