KH10 SeriesNew
Features
- Small precision type
- Long-life Reliability
- Excellent solderability,bondability
- Excellent stability against Au/Sn soldering process(about 350℃)

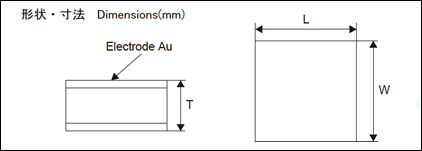

Dimensions
| Series | Part Number | L | W | T |
|---|---|---|---|---|
| KH10 | 6E103 | 0.60±0.05 | 0.60±0.05 | 0.25max. |
| 3U104 | 0.50±0.05 | 0.50±0.05 | 0.30max. |
Specifications
| Resistance tolerance | ±1％，±2％，±3％（R25） |
|---|---|
| B Value tolerance | ±1％（B25／50） |
| Operating temperature range | -40℃〜+125℃ |
| Heat Dissipation Constant | 0.3mW／℃ |
| Maximum Power Dissipation | 30mW |
Characteristics
| Part Number | Resistance R25 | B Value B25/50 | R-T DATA | |
|---|---|---|---|---|
| CSV | ||||
| 6E103 | 10kΩ | 3950K |  |
 |
| 3U104 | 100kΩ | 3950K | |
|
