KH05 SeriesNew
Features
- Small precision type
- Long-life Reliability
- Excellent solderability,bondability
- Excellent stability against Au/Sn soldering process(about 350℃)

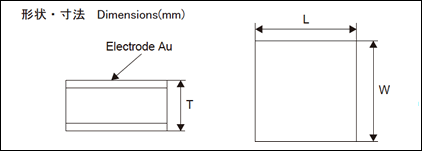

Dimensions
| Series | Part Number | L | W | T |
|---|---|---|---|---|
| KH05 | 6D103 | 0.32±0.05 | 0.32±0.05 | 0.20max. |
Specifications
| Resistance tolerance | ±1％，±2％，±3％（RT） |
|---|---|
| B Value tolerance | ±1％（B25／50） |
| Operating temperature range | -40℃〜+125℃ |
| Heat Dissipation Constant | 0.15mW／℃ |
| Maximum Power Dissipation | 15mW |
Characteristics
| Part Number | Resistance R25 | B Value B25/50 | R-T DATA | |
|---|---|---|---|---|
| CSV | ||||
| 6D103 | 10kΩ | 3950K |  |
 |
