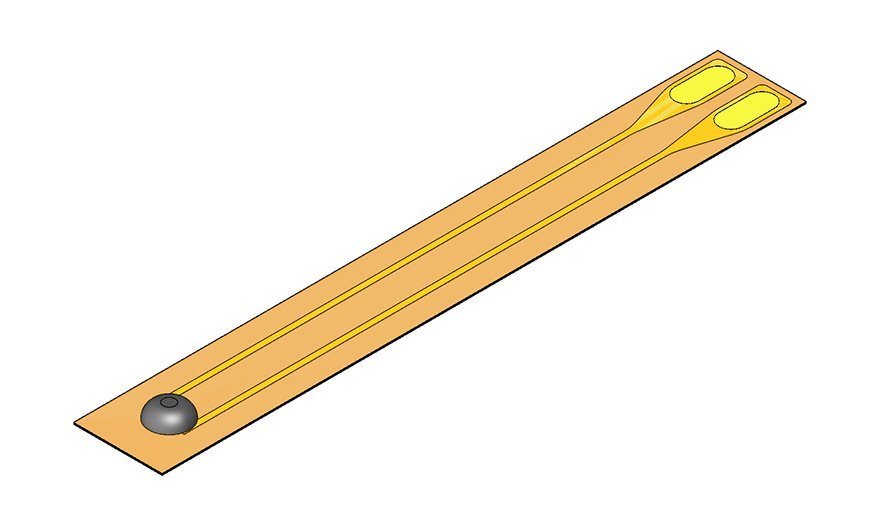

DCS SeriesNew
Features
- Thin design allows insertion into narrow gaps (t=1.0㎜)
- Can be attached to curved surfaces due to its flexibility
- Quick response.
Dimensions
Specifications
| Resistance tolerance | ±1.5％（R25） |
|---|---|
| B Value tolerance | ±1％（B25／50） |
| Operating temperature range | -40℃〜+125℃ |
| Heat Dissipation Constant | 1.5mW／℃ |
| Maximum Power Dissipation | 150mW |
Characteristics
| Type | Resistance R25 | B Value B25/50 | R-T DATA | |
|---|---|---|---|---|
| CSV | ||||
| STD103 | 10kΩ | 3380K |  |
 |
| STD104 | 100kΩ | 4250K | |
|
