HBS-45

The HBS-45 is a NTC Thermistor for hot boilers and water heaters.

Useful information

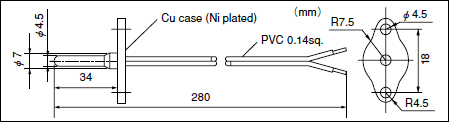

Dimensions(mm)

Features

Characteristics

Resistance R25=11kΩ±3%
B Value (3T) B25/50=3950K±2%
B25/85 =3989K
Operating temperature range -30℃~+100℃
Thermal Time Constant(in water) 3sec.

R-T DATA
PDF CSV

*Please consult us regarding the operating conditions of Thermistor Sensors.
