Engineering Services
Mitsubishi Materials Corporation is not only
a leading non-ferrous metals producer, but
can also provide the following engineering
services for the Mitsubishi Process to customers
upon request.
- Feasibility Study
- Test Work
- Licencing
- Basic Engineering
- Supervision of detailed Engineering
- Technical Training
- Start-up Assistance
- Supervision of Plant Erection and Construction
Work
- Supply of Proprietary Machinery, Equipment,
and Facilities
For more information on these or other services,
please contact us by clicking the Customer
Support Icon below:.
Customer Support
 |

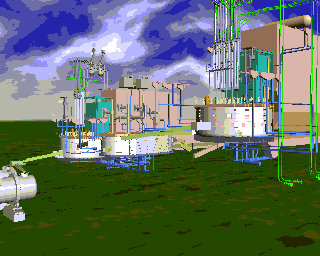

- CAD diagram of smelter seen from the control
room :
- The Mitsubishi furnaces and anode furnaces
are sequentially linked with enclosed launders.
|
 |

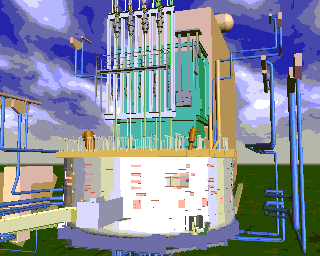

- CAD diagram of Smelting furnace (S-furnace)
:
- The melts (slag and matte ) produced in the
S-furnace flow out and enter the slag cleaning
furnace(CL-furnace). Process lances are equipped
on the furnace roof for feed material charging
and oxygen-enriched air blowing.
|
 |

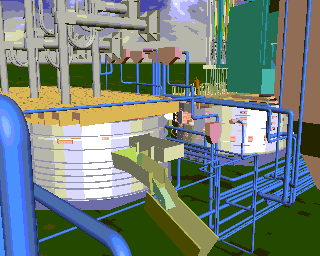

- CAD diagram of the CL-furnace :
- Discard slag (CL-slag) is separated from
matte and then water-granulated.
|
|
|

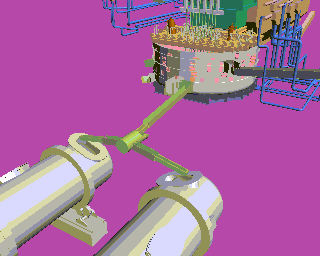

- CAD diagram of the C-furnace and Anode Furnaces
:
- Blister is continuously syphoned out from
the C-furnace and transferred into anode
furnaces through the refractory enclosed
launder.
|
