DSAZR 系列

特 点

•可在各种电源电路中使用。
•可用于电视机天线输入电路的防浪涌。
•部分型号已获得UL、CSA、TÜV认证。

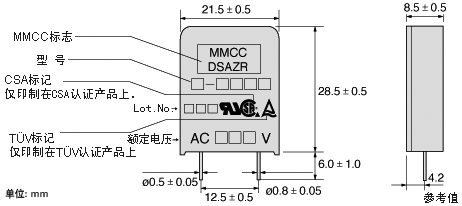

形状·尺寸

特性

额定电压 型 号 直流放电开始电压 绝缘阻抗 静电容量
1kHz-6V max.
浪涌耐量
8/20μsec.
AC 125V DSAZR1-301L 500V (400~600) 100MΩmin. DC 100V 2pF max. 1000A
DSAZR1-501M 600V (480~720) DC 250V
DSAZR1-102M 1,100V (880~1,320) DC 500V
DSAZR1-242M 2,400V (1,920~2,880)
DSAZR1-282M 2,800V (2,240~3,360)
DSAZR1-302M 3,000V (2,400~3,600)
DSAZR1-362M 3,600V (2,880~4,320)
DSAZR1-402M 4,000V (3,200~4,800)
DSAZR1-452M 4,500V (3,600~5,400) DC 1000V
AC 250V DSAZR2-501M 800V (640~960) DC 250V
DSAZR2-102M 1,400V (1,120~1,680) DC 500V
DSAZR2-242M 2,400V (1,920~2,880)
DSAZR2-302M 3,000V (2,400~3,600)
DSAZR2-362M 3,600V (2,880~4,320)
DSAZR2-402M 4,000V (3,200~4,800)
DSAZR2-452M 4,500V (3,600~5,400) DC 1000V
额定电压 型 号 浪涌寿命
8/20μsec.
100A
AC耐电压 UL规格认证产品 CSA认证
EN认证
1)
UL1449
2)
C22.2No.1
3)
EN60065
EN60950-1
AC 125V DSAZR1-301L 300 times - - -
DSAZR1-501M - - -
DSAZR1-102M - - - -
DSAZR1-242M AC1,000V-1min.
AC 1,200V-3sec
-
DSAZR1-282M AC 1,250V-3sec - -
DSAZR1-302M AC 1,500V-1min -
DSAZR1-362M AC 1,800V-3sec -
DSAZR1-402M AC 2,000V-1min -
DSAZR1-452M AC 2,000V-1min -
AC 250V DSAZR2-501M - - -
DSAZR2-102M - - - -
DSAZR2-242M AC1,000V-1min.
AC 1,200V-3sec
- -
DSAZR2-302M AC 1,500V-1min.
DSAZR2-362M AC 1,800V-3sec
DSAZR2-402M AC 2,000V-1min
DSAZR2-452M AC 2,000V-1min

1): UL Standard UL 1449 File No. E318314

2): CSA Standard C22.2 No. 1 File No. CA87070

3): TÜV Report No. J9251508
